• Gamma has the latest advanced detection and scanning systems to detect gold, metals and voids.
• This device works on a new techniques and modern electronic foundations that offer new concepts and dimensions in the world of ground imaging devices, A multi-tasking gamma device that allows users to do geological exploration and surveying in its wide ranges, with all tools and applications needed to complete the searches successfully, This device was provided with 5-inch high-resolution colorful screen, it allows you to work with advanced professional functions and programs to detect underground targets with full control of the scanning properties and your path exploration journey until you reach the desired target.
• This device can be used through 3 different detection and exploration systems
1- Gradiosmart system
2- Live Scan
3- 3D Ground Scanner
- There are many features to distinguish between GAMMA device and other ground imaging devices, GAMMA has a modern technological character that has no such ease of dealing and use, accuracy and speed in the immediate results given by the three systems provided by the device.
- Modern and unique design, which gives you the power and confidence to complete your explorations easily, has the convenience in detection, light weight and ease to use.
- This device was made and designed entirely and all its parts and components through Ajax factory for detection techniques without use of any external parts, which gives the device a high performance, reliability and quality is unparalleled.
- High-quality design designed to work in extreme conditions and resistant to noise from the surrounding environment.

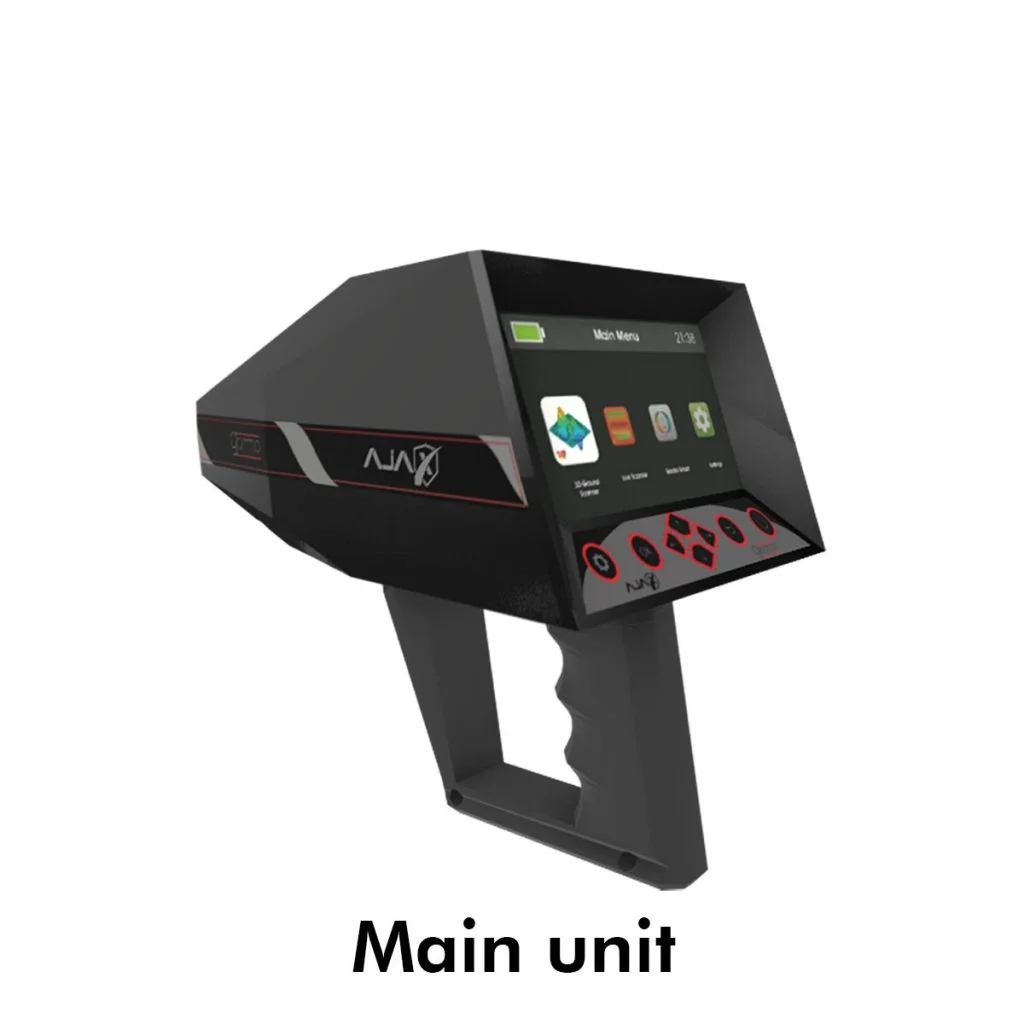

- Colorful screen to display results and settings in 5-inch size, allowing the user to control overall the device settings and to show the results and characteristics of the search.
- Ideal interfaces and programs that give you precise control and ease of use the device during the search.
- The main battery place inside the device carry handle, it can open and close, which is easy to replace the battery if it is damaged without having to open the main case of the device.
- The basic power allows the device to work for 5 continuous working hours at maximum sound levels and backlight levels of the search screen.
- Backup power bank unit can be connected to the device when the main power is finished which allows you to work with the device for 10 continuous working hours.

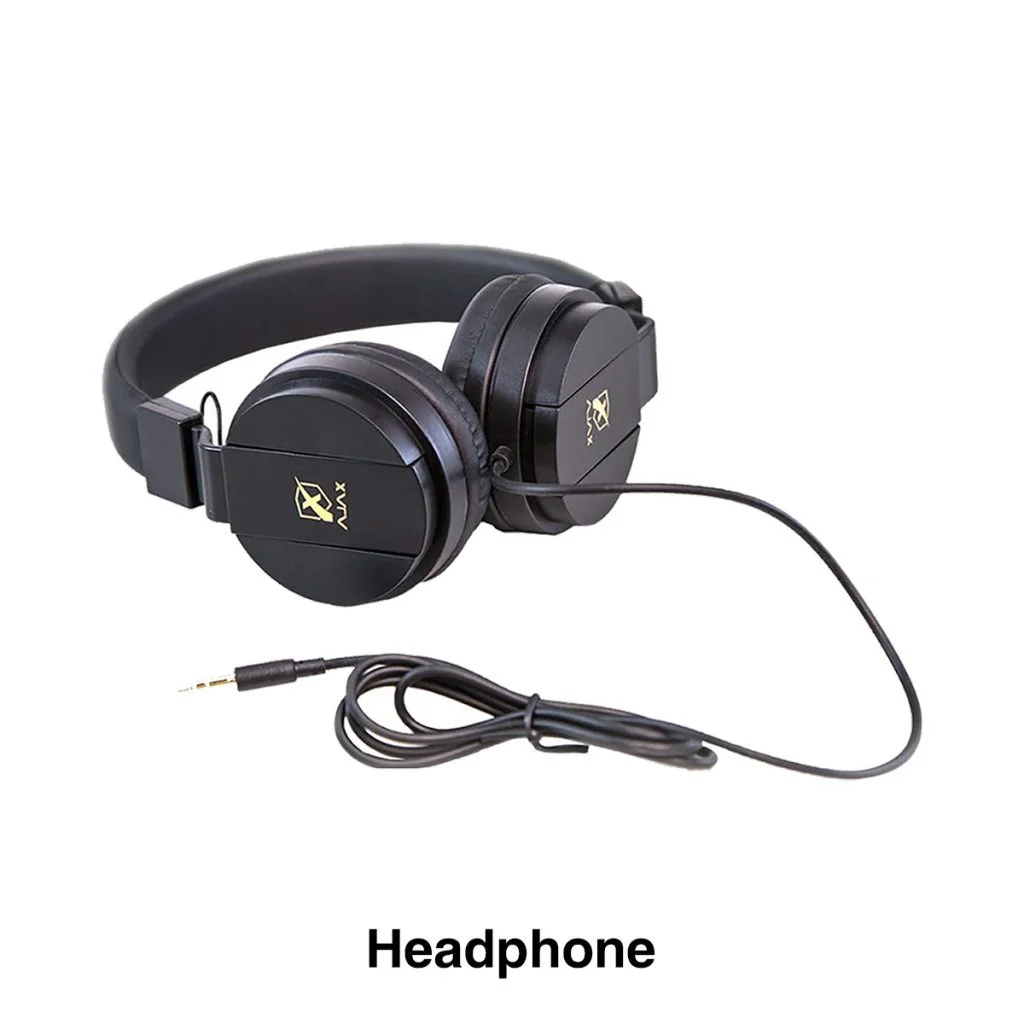

- Headphone outlet, which allows you to hear clear search results and alerts with convenient and varied audio results in MP3 and WAVES.
- The charger outlet, which enables a fast and intelligent charging of the battery for high performance and proper charging.
- The input socket of the multi-tasking search systems, through it you can choose the system that you want to work with, it has a sophisticated mechanical mechanism to dismantle and install the search sensor without any effort or time.
- Control keys interface, anti-shock and humidity it is working by pressing buttons, which gives you total control of the program and settings of the device on the screen:

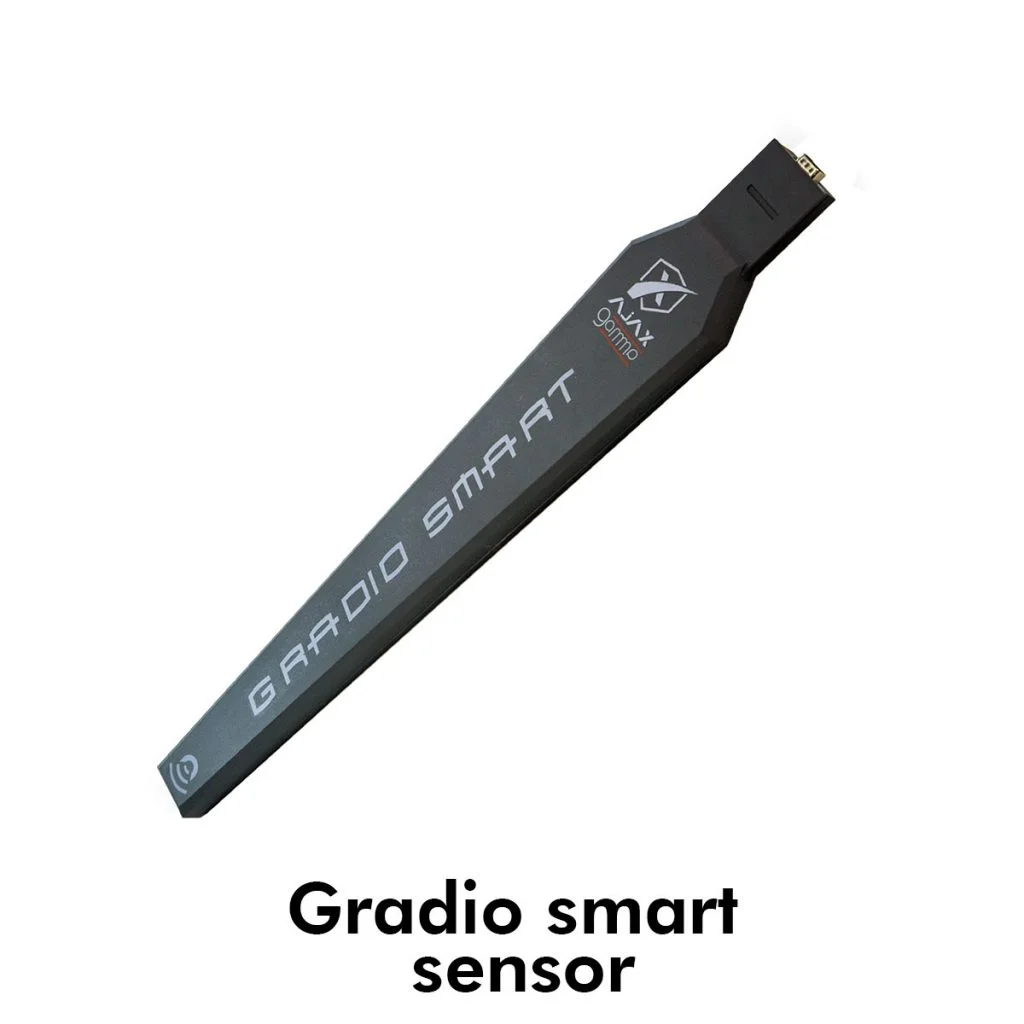

Gradio smart system
• It is known that the gradiosmart systems to detect the subtle changes that happened to soil and determine materials and mineral objects inside it, in addition to the cavity.
• This system usually contains large sizes of equipment and long sensors that aren’t easy to movement and convenient control in the search and immediate results, but we provided you with intelligent control and detection tools that show integrated results on the search interface of this system.
• This system provides accurate measurement of magnetic changes in the soil to detect and identify metallic objects and spaces in addition to distinguish between them.
• To work on this system, the sensing unit must be connected, which is made with high-power vector-guided sensors.
Full control of search criteria and settings through high-definition smart interface.
• The results interface shows the signal strength level of the detected target, in addition to oscilloscope window where you can see the size of the target that found.
• The intelligent depth measurement program provides you with a precise measurement of the target’s depth underground regarding to the measurement of the level of reflective changes of the magnetic field.
| Maximum Depth | 10 meters, with a depth measurement feature of the target that detected. |
| Targets | It is used to detect for metal, voids, mining operations, archeology, and unexploded ordnance, it can also be used to locate pipes and wires. |
| Measurement leve | From ±20 to± 1000µT |
| Sound effects | Yes, this system also gives optional acoustic and vibrational effects. |
| Digital indicators | Yes, interactive response indicators that explain type and size of the detected target as well |
| Ground Balance | Manual and automatic, that help to eliminate the magnetic effects caused by the soil |
Live scan system
• For the first time in the world integrated direct imaging system into the main processing screen of the device without using any external processing screen and programs, this system gives you a direct imaging of all things underground like buried and treasures and clarify its sizes, depths and types.
• A special interface to direct scan system that gives you a direct view of the searching area in real time.

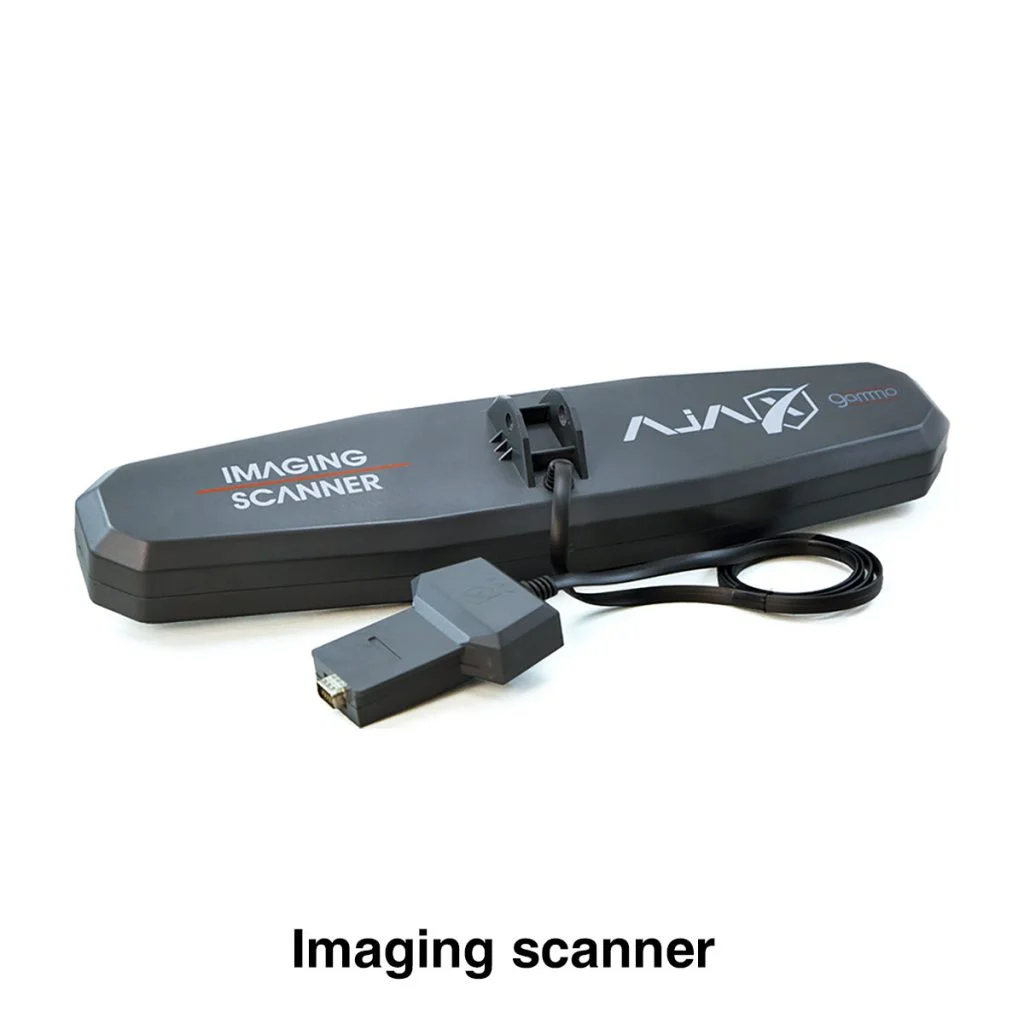

• You can use two types of scanners that come with the device either through the multi-tasking longitudinal scanner to scan a specific location or through the multi-radar cross-section scanner that works with a high-speed directed power to cover and scan large area in less time.
• Control the speed of scanning, which corresponds to the speed of the user’s walk and steps.
• Ground balance and calibration, either through automatic calibration of the reference system required for tuning, or through manual calibration, which is determined by the user according to what he deems appropriate for the search area.
• Pause scanning feature, and continue scanning could be done immediately in seconds, without any settings or references.
| Maximum Depth | 30 meters. |
| Targets | Direct imaging that showing the locations of the mineral and cavity targets and the distinction between them. |
| Frequency detection | Automatic, from 50 MHz to 350 MHz |
| Sound effects | Yes, this system also gives optional acoustic and vibrational effects. |
| Digital indicators | Yes, direct scanning on the screen shows the targets and their types instantly. |
| Ground Balance | Manual and automatic, that help to eliminate the magnetic effects caused by the soil. |
3D ground scanner system
• According to our survey, we found that every prospector who used the ground imaging systems have encountered many complexities in the use of these devices and its complex programs. However, we have corrected all those complexities and difficulties in our 3D systems. Our system gives you easy and smooth way to use, and anyone can easily interact with.
• There is a special software interface to work on the 3D imaging system, allowing you to free control scan settings and properties.
• This system has several features to complete the scan
• scanning feature using the Tablet PC to work on AJAX application for analysis.
• Or ground scanning feature from the device screen directly, as desired by the user.
• This system allows you to scan the ground on the screen directly by preparing complete scanning properties, such as control the steps and rows of scanning, scanning method, starting point, searching method (automatic or manual), and then start scanning and show results directly on the screen, in addition to the ability to analyses the scan and find targets places and determine its points.

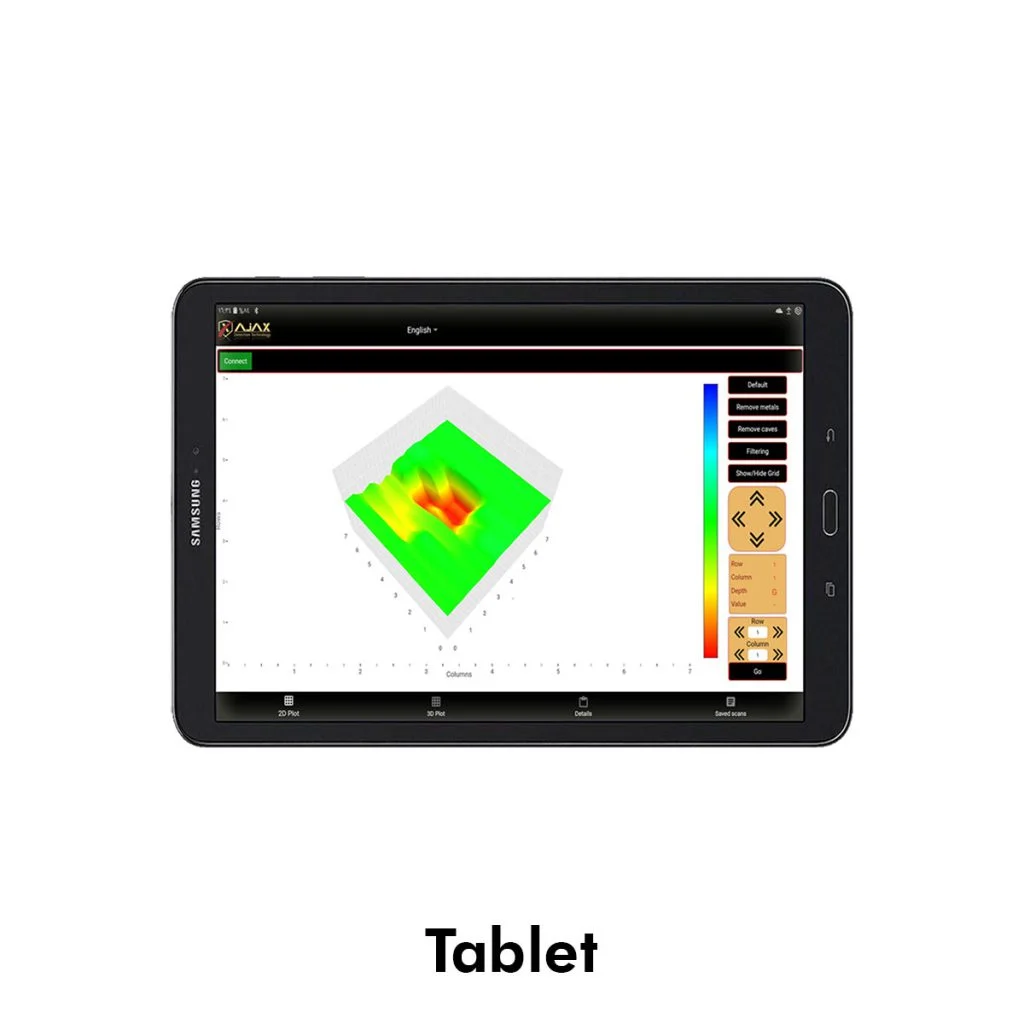

• The user can also connect the device with the Tablet PC via Bluetooth to work on the Ajax application for analysis, to get more analysis tools and 3D scenes of the targets.
• You can use two types of scanners that come with the device either through the multi-tasking longitudinal scanner to scan a specific location or through the multi-radar cross-section scanner that works with a high-speed directed power to cover and scan large area in less time.
• Ground balance and calibration, either through automatic calibration of the reference system required for tuning, or through manual calibration, which is determined by the user according to what he deems appropriate for the search area.
| Maximum Depth | 30 meters. |
| Targets | Metallic targets and voids. |
| Frequency detection | Automatic, from 50 MHz to 350 MHz |
| Sound effects | Yes, alert indicators for scan steps and notifications. |
| Digital indicators | Yes, a detailed scan to show targets locations in addition to 2D and 3D images. |
| Ground Balance | Manual and automatic, that help to eliminate the magnetic effects caused by the soil. |
| Research Principle | Multi-detection systems and functions, contains 3 optional systems |
|---|---|
| Operating Principle | Processing data and digital signals and converting them to visual and audible results |
| Type of processing | Multiprocessing |
| Operation processor | 32 Pit MICROCONTLLER |
| Display Screen | TFT colorful screen with 800 x 480WVGA size, 16-bit color depth |
| Basic battery | 7.4 volts, 3300 mA |
| Power consumption | Average consumption 400 mA |
| Basic Battery Hours | (5 hours) and it may different regarding on screen brightness settings, sound levels and other functions that may be in playback mode. |
| Power Bank Hours | 10 hours. |

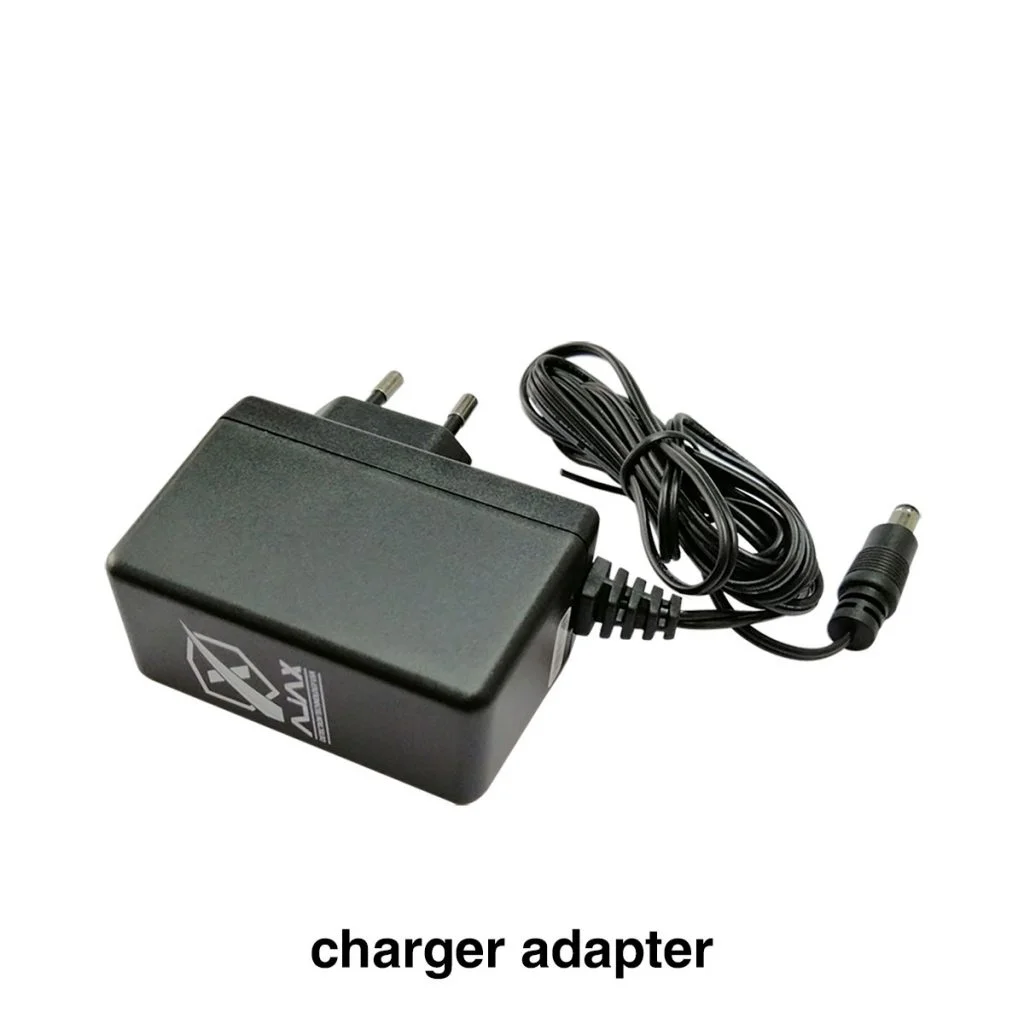

| Electric charger | Power supply / power input 240-100 V AC, power output 15 V 1.2A |
| Power Storage | External backup battery 11.1 volts, 7800 mA with two power outputs. Power Output USB: 5 Volts 2.1 Amps, for general use (Mobile phone, Tablet phone, Tablet PC). Device Power output: 11.1 volts 3 amp. |
| storage capacity | 1 GB / it can save to 999 scans. |
| Sound | High quality sounds, 32 KBIT/S, MP3 |
| Sound notifications | Yes, with full control of sound levels in all functions. |
| Vibrating Alert | Yes, (optional) |
| Bluetooth | Yes available, 2.4 GHz, sensitivity up to -80dBm |
| Languages | Yes, multilingual, with 8 languages |
| date and time | Yes |
| password | Yes, resettable / or canceled password |
| Dimensions | 74x21x15 cm (with Gradio smart) |
| Dimensions | 145x45x24 cm (with scanner and the arm is as long as possible) |
| Dimensions | 121x45x24 cm (with scanner and the arm is as short as possible) |
| Real dimensions | 88x52x20 cm |

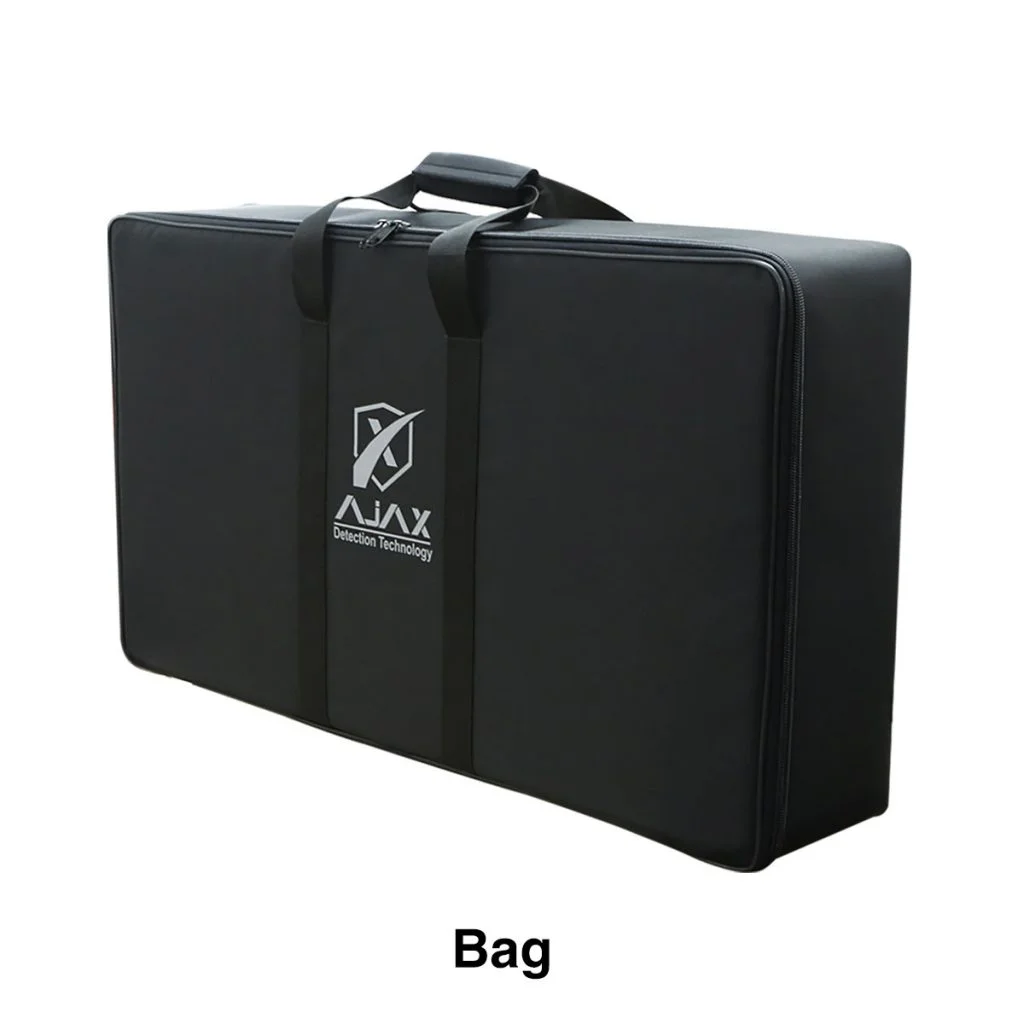

| Full weight in bag | 5 kg |
| Weight for assembly | Ranging from 1 kg to 1.7 kg, depending on the sensor connected to the device. |
| Operating temperature | From 10° C to 60° C |
| Storage temperature | From 10° C to 80° C |
| Humidity | It can be stored and operated at 100% humidity. |
